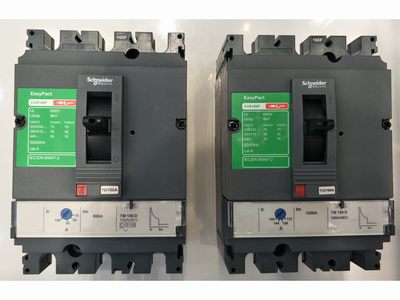

EasyPact CVS塑壳断路器100~250A
固定式100~250A |
|
|
|
| |
产品规格 | In | Icu | 订货号 | 订货号 | |
|
| A | KA | 固定式3极 | 固定式4极 |
CVS100E |
|
|
|
| |
|
| 15 | 25 | LV510832 | LV510850 |
|
| 20 | 25 | LV510834 | LV510852 |
|
| 25 | 25 | LV510835 | LV510853 |
|
| 30 | 25 | LV510836 | LV510854 |
|
| 40 | 25 | LV510838 | LV510856 |
|
| 50 | 25 | LV510840 | LV510858 |
|
| 60 | 25 | LV510841 | LV510859 |
|
| 75 | 25 | LV510843 | LV510861 |
|
| 80 | 25 | LV510844 | LV510862 |
|
| 100 | 25 | LV510845 | LV510863 |
CVS100B - 250H |
|
|
|
| |
| CVS100B | 16 | 25 | LV510300 | LV510310 |
|
| 25 | 25 | LV510301 | LV510311 |
|
| 32 | 25 | LV510302 | LV510312 |
|
| 40 | 25 | LV510303 | LV510313 |
|
| 50 | 25 | LV510304 | LV510314 |
|
| 63 | 25 | LV510305 | LV510315 |
|
| 80 | 25 | LV510306 | LV510316 |
|
| 100 | 25 | LV510307 | LV510317 |
| CVS100F | 16 | 36 | LV510330 | LV510340 |
|
| 25 | 36 | LV510331 | LV510341 |
|
| 32 | 36 | LV510332 | LV510342 |
|
| 40 | 36 | LV510333 | LV510343 |
|
| 50 | 36 | LV510334 | LV510344 |
|
| 63 | 36 | LV510335 | LV510345 |
|
| 80 | 36 | LV510336 | LV510346 |
|
| 100 | 36 | LV510337 | LV510347 |
| CVS100N | 16 | 50 | LV510470 | LV510480 |
|
| 25 | 50 | LV510471 | LV510481 |
|
| 32 | 50 | LV510472 | LV510482 |
|
| 40 | 50 | LV510473 | LV510483 |
|
| 50 | 50 | LV510474 | LV510484 |
|
| 63 | 50 | LV510475 | LV510485 |
|
| 80 | 50 | LV510476 | LV510486 |
|
| 100 | 50 | LV510477 | LV510487 |
| CVS100H | 16 | 70 | LV510500 | LV510510 |
|
| 25 | 70 | LV510501 | LV510511 |
|
| 32 | 70 | LV510502 | LV510512 |
|
| 40 | 70 | LV510503 | LV510513 |
|
| 50 | 70 | LV510504 | LV510514 |
|
| 63 | 70 | LV510505 | LV510515 |
|
| 80 | 70 | LV510506 | LV510516 |
|
| 100 | 70 | LV510507 | LV510517 |
CVS160B | 100 | 25 | LV516301 | LV516311 | |
|
| 125 | 25 | LV516302 | LV516312 |
|
| 160 | 25 | LV516303 | LV516313 |
| CVS160F | 100 | 36 | LV516331 | LV516341 |
|
| 125 | 36 | LV516332 | LV516342 |
|
| 160 | 36 | LV516333 | LV516343 |
| CVS160N | 100 | 50 | LV516461 | LV516466 |
|
| 125 | 50 | LV516462 | LV516467 |
|
| 160 | 50 | LV516463 | LV516468 |
| CVS160H | 100 | 70 | LV516476 | LV516481 |
|
| 125 | 70 | LV516477 | LV516482 |
|
| 160 | 70 | LV516478 | LV516483 |
| CVS250B | 200 | 25 | LV525302 | LV525312 |
|
| 250 | 25 | LV525303 | LV525313 |
| CVS250F | 200 | 36 | LV525332 | LV525342 |
|
| 250 | 36 | LV525333 | LV525343 |
| CVS250N | 200 | 50 | LV525452 | LV525457 |
|
| 250 | 50 | LV525453 | LV525458 |
| CVS250H | 200 | 70 | LV525467 | LV525472 |
|
| 250 | 70 | LV525468 | LV525473 |
CVS100E - 250H |
|
|
|
|
CVS100E | 15 | 25 | LV510832P |
|
| 25 | 25 | LV510835P |
|
| 30 | 25 | LV510836P |
|
| 40 | 25 | LV510838P |
|
| 50 | 25 | LV510840P |
|
| 60 | 25 | LV510841P |
|
| 80 | 25 | LV510844P |
|
| 100 | 25 | LV510845P |
|
CVS100B | 16 | 25 | LV510300P | LV510310P |
| 25 | 25 | LV510301P | LV510311P |
| 32 | 25 | LV510302P | LV510312P |
| 40 | 25 | LV510303P | LV510313P |
| 50 | 25 | LV510304P | LV510314P |
| 63 | 25 | LV510305P | LV510315P |
| 80 | 25 | LV510306P | LV510316P |
| 100 | 25 | LV510307P | LV510317P |
CVS100F | 16 | 36 | LV510330P | LV510340P |
| 25 | 36 | LV510331P | LV510341P |
| 32 | 36 | LV510332P | LV510342P |
| 40 | 36 | LV510333P | LV510343P |
| 50 | 36 | LV510334P | LV510344P |
| 63 | 36 | LV510335P | LV510345P |
| 80 | 36 | LV510336P | LV510346P |
| 100 | 36 | LV510337P | LV510347P |
CVS100N | 16 | 50 | LV510470P | LV510480P |
| 25 | 50 | LV510471P | LV510481P |
| 32 | 50 | LV510472P | LV510482P |
| 40 | 50 | LV510473P | LV510483P |
| 50 | 50 | LV510474P | LV510484P |
| 63 | 50 | LV510475P | LV510485P |
| 80 | 50 | LV510476P | LV510486P |
| 100 | 50 | LV510477P | LV510487P |
CVS100H | 16 | 70 | LV510500P | LV510510P |
| 25 | 70 | LV510501P | LV510511P |
| 32 | 70 | LV510502P | LV510512P |
| 40 | 70 | LV510503P | LV510513P |
| 50 | 70 | LV510504P | LV510514P |
| 63 | 70 | LV510505P | LV510515P |
| 80 | 70 | LV510506P | LV510516P |
| 100 | 70 | LV510507P | LV510517P |
CVS160B | 100 | 25 | LV516301P | LV516311P |
| 125 | 25 | LV516302P | LV516312P |
| 160 | 25 | LV516303P | LV516313P |
CVS160F | 100 | 36 | LV516331P | LV516341P |
| 125 | 36 | LV516332P | LV516342P |
| 160 | 36 | LV516333P | LV516343P |
CVS160N | 100 | 50 | LV516461P | LV516466P |
| 125 | 50 | LV516462P | LV516467P |
| 160 | 50 | LV516463P | LV516468P |
CVS160H | 100 | 70 | LV516476P | LV516481P |
| 125 | 70 | LV516477P | LV516482P |
| 160 | 70 | LV516478P | LV516483P |
CVS250B | 200 | 25 | LV525302P | LV525312P |
| 250 | 25 | LV525303P | LV525313P |
CVS250F | 200 | 36 | LV525332P | LV525342P |
| 250 | 36 | LV525333P | LV525343P |
CVS250N | 200 | 50 | LV525452P | LV525457P |
| 250 | 50 | LV525453P | LV525458P |
CVS250H | 200 | 70 | LV525467P | LV525472P |
| 250 | 70 | LV525468P | LV525473P |
CVS100B | 25 | 25 | LV510531 | LV510651 |
| 32 | 25 | LV510532 | LV510652 |
| 40 | 25 | LV510533 | LV510653 |
| 50 | 25 | LV510534 | LV510654 |
| 63 | 25 | LV510535 | LV510655 |
| 80 | 25 | LV510536 | LV510656 |
| 100 | 25 | LV510537 | LV510657 |
CVS100F | 25 | 36 | LV510561 | LV510681 |
| 32 | 36 | LV510562 | LV510682 |
| 40 | 36 | LV510563 | LV510683 |
| 50 | 36 | LV510564 | LV510684 |
| 63 | 36 | LV510565 | LV510685 |
| 80 | 36 | LV510566 | LV510686 |
| 100 | 36 | LV510567 | LV510687 |
CVS100N | 25 | 50 | LV510591 | LV510711 |
| 32 | 50 | LV510592 | LV510712 |
| 40 | 50 | LV510593 | LV510713 |
| 50 | 50 | LV510594 | LV510714 |
| 63 | 50 | LV510595 | LV510715 |
| 80 | 50 | LV510596 | LV510716 |
| 100 | 50 | LV510597 | LV510717 |
CVS100H | 25 | 70 | LV510621 | LV510741 |
| 32 | 70 | LV510622 | LV510742 |
| 40 | 70 | LV510623 | LV510743 |
| 50 | 70 | LV510624 | LV510744 |
| 63 | 70 | LV510625 | LV510745 |
| 80 | 70 | LV510626 | LV510746 |
| 100 | 70 | LV510627 | LV510747 |
CVS160B | 100 | 25 | LV516496 | LV516556 |
| 125 | 25 | LV516497 | LV516557 |
| 160 | 25 | LV516498 | LV516558 |
CVS160F | 100 | 36 | LV516511 | LV516571 |
| 125 | 36 | LV516512 | LV516572 |
| 160 | 36 | LV516513 | LV516573 |
CVS160N | 100 | 50 | LV516526 | LV516586 |
| 125 | 50 | LV516527 | LV516587 |
| 160 | 50 | LV516528 | LV516588 |
CVS160H | 100 | 70 | LV516541 | LV516601 |
| 125 | 70 | LV516542 | LV516602 |
| 160 | 70 | LV516543 | LV516603 |
CVS250B | 200 | 25 | LV525482 | LV525542 |
| 250 | 25 | LV525483 | LV525543 |
CVS250F | 200 | 36 | LV525497 | LV525557 |
| 250 | 36 | LV525498 | LV525558 |
CVS250N | 200 | 50 | LV525512 | LV525572 |
| 250 | 50 | LV525513 | LV525573 |
CVS250H | 200 | 70 | LV525527 | LV525587 |
| 250 | 70 | LV525528 | LV525588 |
CVS100B | 25 | 25 | LV510541 | LV510661 | |
|
| 32 | 25 | LV510542 | LV510662 |
|
| 40 | 25 | LV510543 | LV510663 |
|
| 50 | 25 | LV510544 | LV510664 |
|
| 63 | 25 | LV510545 | LV510665 |
|
| 80 | 25 | LV510546 | LV510666 |
|
| 100 | 25 | LV510547 | LV510667 |
| CVS100F | 25 | 36 | LV510571 | LV510691 |
|
| 32 | 36 | LV510572 | LV510692 |
|
| 40 | 36 | LV510573 | LV510693 |
|
| 50 | 36 | LV510574 | LV510694 |
|
| 63 | 36 | LV510575 | LV510695 |
|
| 80 | 36 | LV510576 | LV510696 |
|
| 100 | 36 | LV510577 | LV510697 |
| CVS100N | 25 | 50 | LV510601 | LV510721 |
|
| 32 | 50 | LV510602 | LV510722 |
|
| 40 | 50 | LV510603 | LV510723 |
|
| 50 | 50 | LV510604 | LV510724 |
|
| 63 | 50 | LV510605 | LV510725 |
|
| 80 | 50 | LV510606 | LV510726 |
|
| 100 | 50 | LV510607 | LV510727 |
| CVS100H | 25 | 70 | LV510631 | LV510751 |
|
| 32 | 70 | LV510632 | LV510752 |
|
| 40 | 70 | LV510633 | LV510753 |
|
| 50 | 70 | LV510634 | LV510754 |
|
| 63 | 70 | LV510635 | LV510755 |
|
| 80 | 70 | LV510636 | LV510756 |
|
| 100 | 70 | LV510637 | LV510757 |
| CVS160B | 100 | 25 | LV516501 | LV516561 |
|
| 125 | 25 | LV516502 | LV516562 |
|
| 160 | 25 | LV516503 | LV516563 |
| CVS160F | 100 | 36 | LV516516 | LV516576 |
|
| 125 | 36 | LV516517 | LV516577 |
|
| 160 | 36 | LV516518 | LV516578 |
| CVS160N | 100 | 50 | LV516531 | LV516591 |
|
| 125 | 50 | LV516532 | LV516592 |
|
| 160 | 50 | LV516533 | LV516593 |
| CVS160H | 100 | 70 | LV516546 | LV516606 |
|
| 125 | 70 | LV516547 | LV516607 |
|
| 160 | 70 | LV516548 | LV516608 |
| CVS250B | 200 | 25 | LV525487 | LV525547 |
|
| 250 | 25 | LV525488 | LV525548 |
| CVS250F | 200 | 36 | LV525502 | LV525562 |
|
| 250 | 36 | LV525503 | LV525563 |
| CVS250N | 200 | 50 | LV525517 | LV525577 |
|
| 250 | 50 | LV525518 | LV525578 |
| CVS250H | 200 | 70 | LV525532 | LV525592 |
|
| 250 | 70 | LV525533 | LV525593 |
电动机保护 |
|
|
|
|
产品规格 | In | Icu | 订货号 | 订货号 |
| A | KA | 固定式3极 | 插入式3极 |
CVS100F - 250H |
|
|
|
|
CVS100F | 2.5 | 36 | LV510440 | LV510440P |
| 6.3 | 36 | LV510441 | LV510441P |
| 12.5 | 36 | LV510442 | LV510442P |
| 25 | 36 | LV510443 | LV510443P |
| 50 | 36 | LV510444 | LV510444P |
| 100 | 36 | LV510445 | LV510445P |
CVS100N | 2.5 | 50 | LV510450 | LV510450P |
| 6.3 | 50 | LV510451 | LV510451P |
| 12.5 | 50 | LV510452 | LV510452P |
| 25 | 50 | LV510453 | LV510453P |
| 50 | 50 | LV510454 | LV510454P |
| 100 | 50 | LV510455 | LV510455P |
CVS100H | 2.5 | 70 | LV510460 | LV510460P |
| 6.3 | 70 | LV510461 | LV510461P |
| 12.5 | 70 | LV510462 | LV510462P |
| 25 | 70 | LV510463 | LV510463P |
| 50 | 70 | LV510464 | LV510464P |
| 100 | 70 | LV510465 | LV510465P |
CVS160F | 100 | 36 | LV516439 | LV516439P |
| 150 | 36 | LV516440 | LV516440P |
CVS160N | 100 | 50 | LV516450 | LV516450P |
| 150 | 50 | LV516451 | LV516451P |
CVS160H | 100 | 70 | LV516454 | LV516454P |
| 150 | 70 | LV516455 | LV516455P |
CVS250F | 220 | 36 | LV525439 | LV525439P |
CVS250N | 220 | 50 | LV525442 | LV525442P |
CVS250H | 220 | 70 | LV525445 | LV525445P |
